| Model | MQAL 120 SD |
|---|---|
| Dimensions | 1490 mm |
| Fitted with | LED |
| Ballast | Without |
| Power consumption | 55,4 W |
| Connection | 18-30 V |
| Special features | through-wired, Power equipment |
| Luminous flux | 5300 lm |

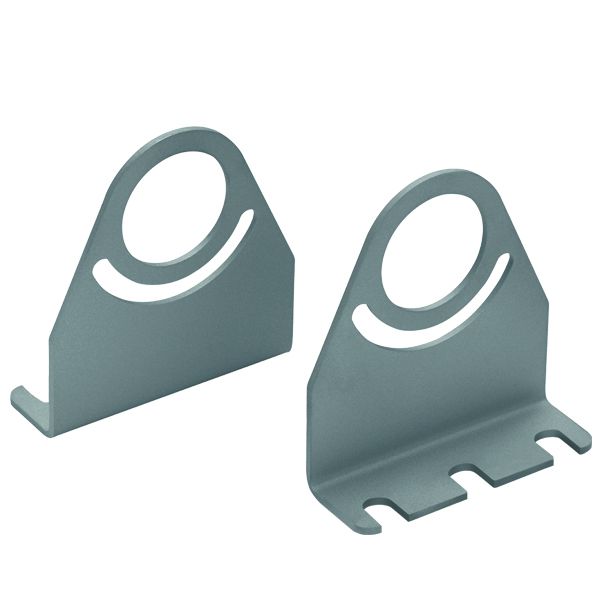

| Fastening | L-angle, Clamp |
| Color temperature | 5000 k |
| Color rendering index | Ra > 80 |
| Color temperature | Cold white |
| Light distribution | Direct, Symmetric |
| Luminaire body | Aluminium |
| Plug | Built-in plug, Serie 763 |
| System of protection | IP67 |
| Class of protection | III |
| Technology | Switchable |
The MACH LED PLUS.seventy surface-mounted luminaire is a linear luminaire based on maintenance-free LED technology. The power equipment with double the number of LEDs is ideal for initial equipment, especially for larger machines with higher lighting requirements.
With an outer diameter of 70 mm, it is perfect for replacing classic tube luminaires. Its robust housing is made of aluminium and has a solid safety glass cover. The side parts are made of high-performance plastic to ensure maximum durability.
The luminaire is equipped with a potted M12 plug connection. Thanks to the Viton® seal, it offers a high degree of protection and is chemically resistant to various media such as oils or cooling lubricants.
The MACH LED PLUS.seventy surface-mounted luminaire is insensitive to shocks and vibrations, making it ideal for situations with high mechanical and thermal loads. In addition, its connection to the machine voltage enables simple integration into various environments and applications.
